Ref# FSHRE18478


Hi-Rail Equipment For Sale



make an offer
contact us
quote sheet

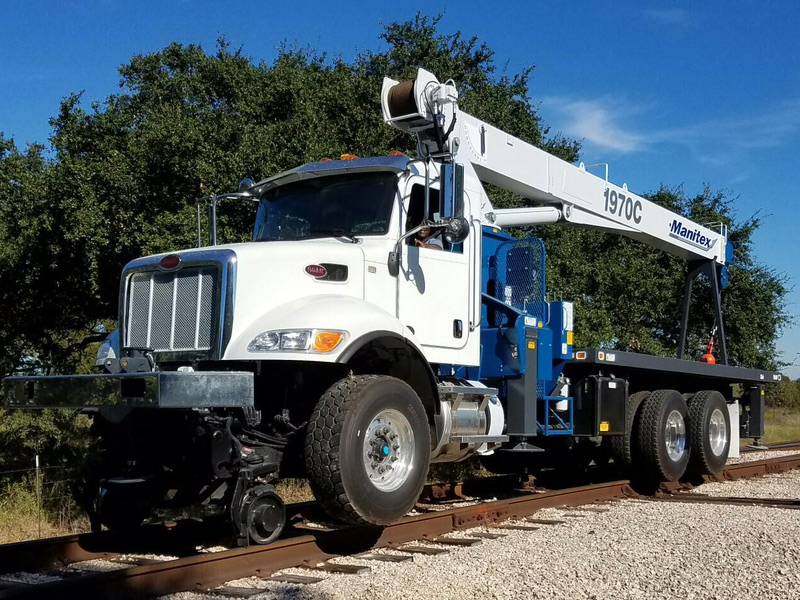

New Manitex 1970C Hi-Rail Crane Truck
19 Ton base rating at 5ft radius
3-Section Telescopic Boom
2-speed Hoist w/ Grooved Drum
300ft of 9/16in (14.3mm) EIPS IWRC Wire Rope
5 Ton (4.5 mt) Hook and Ball
70 Gallon (265 liter) Reservoir
3-Load Sheave Quick Reeve Boom Head
w/Suction Strainer & Ball Valve
Hardwired Anti-Two Block w/ Lockout
Pedestal, Turret, Rotation Bearing & Swing System
Boom Hoist Cylinder
Dual Operator Control Stations
System Pressure Gauge
Load Moment indicator
372 Degree Non Continuous Rotation
Audio/Visual Alert w/ Shutoff
Removable Boom Rest
Audible Outrigger/Stabilizer Motion Alarm
Engine Start/Stop
A-frame Outriggers (21ft 6in Spread Width)
Operators Service/Parts Manuals
A-frame Rear Stabilizers
Boom Length and Angle Indicators
3-Section Hydraulic Pump-Counterclockwise Rotation is Standard
Foot Throttle
Subframe for 20ft (6.71 m) Bed
Electronic Throttle
Outrigger Monitoring
Price: $249,000
Location: TX




For more information about this listing
Please call 512-263-1953

Ask to speak with Garrett Crouch
or email gcrouch@sterlingrail.com

FSHRE18478
